Debugging the C++ standard library on macOS

May 5, 2022

TL;DR: This article describes how to use LLDB on C++ standard library code on macOS

AppleClang vs LLVM
Building libc++
Linking Against libc++
Attaching LLDB on libc++

C++ is far from being an easy programming language to master. I found that a great way to learn advanced C++, albeit an intimidating one sometimes, is to take peeks at undoubtedly one of the most complex pieces of C++: the C++ Standard Template Library implementation from LLVM.

This article describes how to build libc++ (LLVM’s standard library implementation) from source, how to build your own C++ programs against it and more importantly, exemplify how to explore libc++ through LLDB. This article focuses on macOS, but covered the concepts should easily translate to other LLVM-supported platforms.

AppleClang vs LLVM

If you are running macOS, you are most likely making use of clang out of an Xcode installation. Xcode does not bundle LLVM directly. Instead, Xcode maintains a custom distribution of LLVM which confusingly enough, follows a different versioning strategy compared to upstream LLVM. Therefore, if we want to explore the version of the C++ standard library that our Xcode installation is based on, we first need to determine which LLVM version it corresponds to.

We can determine which version of Xcode we are running by using PlistBuddy(8). Assuming your Xcode installation lives at /Applications/Xcode.app, you can obtain its version as follows:

$ /usr/libexec/PlistBuddy -c "print CFBundleShortVersionString" /Applications/Xcode.app/Contents/Info.plist
13.3.1

We can also determine the AppleClang version we are running by printing its version information:

$ clang --version
Apple clang version 13.1.6 (clang-1316.0.21.2.3)
Target: arm64-apple-darwin21.4.0
Thread model: posix
InstalledDir: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin

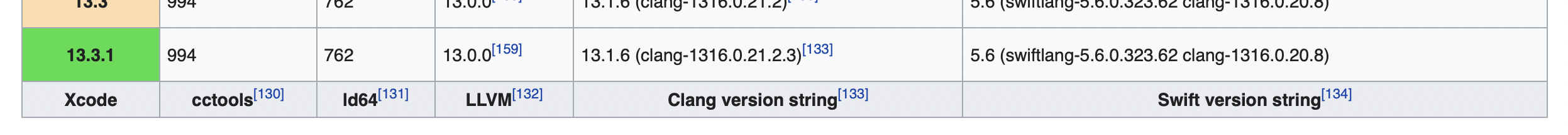

Wikipedia maintains a version comparison table associating Xcode and AppleClang versions to their corresponding upstream LLVM versions. My system is running Xcode 13.3.1 with AppleClang version 13.1.6, which according to Wikipedia, maps to LLVM 13.0.0:

Building libc++

Let’s clone LLVM and checkout 13.0.0, the version corresponding to my Xcode installation:

$ git clone https://github.com/llvm/llvm-project
$ cd llvm-project
$ git checkout llvmorg-13.0.0

LLVM adopts the CMake build system. Instead of building the entirety of LLVM, we can use cmake to only build the libc++ shared library component and its dependencies as follows:

$ mkdir build
$ cmake -G Ninja -S runtimes -B build \
  -DLIBCXX_ENABLE_STATIC=OFF \
  -DLIBCXX_INCLUDE_TESTS=OFF \
  -DLIBCXX_INCLUDE_BENCHMARKS=OFF \
  -DLLVM_ENABLE_RUNTIMES="libcxx;libcxxabi"
$ ninja -C build cxx cxxabi

We can find our own libc++ shared library inside build/lib:

$ file build/lib/libc++.dylib
build/lib/libc++.dylib: Mach-O 64-bit dynamically linked shared library arm64

This shared library includes support for all the C++ standards supported by its corresponding LLVM version.

Linking Against libc++

Let’s write a basic C++17 program that uses a standard library feature only available on C++17, such as std::unordered_map’s insert_or_assign method:

// test.cc
#include <unordered_map>
#include <string>
#include <iostream>

int main() {
  std::unordered_map<std::string, std::string> test;
  test.insert({"foo", "bar"});
  test.insert_or_assign("foo", "baz");
  std::cout << test.at("foo") << "\n";
  return 0;
}

We can compile this C++17 program against our custom libc++ build as follows:

$ clang++ -g -nostdinc++ -nostdlib++ \
  -isystem <path/to/llvm-project>/build/include/c++/v1 \
  -L <path/to/llvm-project>/lib -l c++ \
  -Wl,-rpath,<path/to/llvm-project>/lib \
  -std=c++17 \
  test.cc -o test

The -nostdinc++ and -nostdlib++ flags tell clang to not include the default standard library. The -isystem flag tells clang to add the given path to the system include search path. The next two flags link the program against our libc++ build. The -Wl,-rpath directive adds our custom build library folder as an @rpath directive on the resulting Mach-O binary. Finally, -std sets the C++ standard to compile against.

We can confirm the program has been linked against our custom libc++:

$ otool -L test
test:
        @rpath/libc++.1.dylib (compatibility version 1.0.0, current version 1.0.0)
        /usr/lib/libSystem.B.dylib (compatibility version 1.0.0, current version 1311.100.3)

Where @rpath has been set to the build/lib directory within our LLVM checkout:

$ otool -l test
...
Load command 15
          cmd LC_RPATH
      cmdsize 72
         path <path/to/llvm-project>/build/lib (offset 12)

Running the program works as expected:

$ ./test
baz

Attaching LLDB on libc++

As confirmed by the presence of the LC_SYMTAB and LC_DYSYMTAB Mach-O load commands on libcxx.1.dylib, our libc++ build includes debugging symbols that allow us to explore the C++ standard library through the use of LLDB:

$ otool -l build/lib/libc++.dylib
...
Load command 7
     cmd LC_SYMTAB
 cmdsize 24
  symoff 849184
   nsyms 7070
  stroff 963712
 strsize 430360
Load command 8
            cmd LC_DYSYMTAB
        cmdsize 80
      ilocalsym 0
      nlocalsym 4385
     iextdefsym 4385
     nextdefsym 2221
      iundefsym 6606
      nundefsym 464
         tocoff 0
           ntoc 0
      modtaboff 0
        nmodtab 0
   extrefsymoff 0
    nextrefsyms 0
 indirectsymoff 962304
  nindirectsyms 352
      extreloff 0
        nextrel 0
      locreloff 0
        nlocrel 0
...

After loading the test program on LLDB, we can confirm the program loads our custom libc++ build by using the image list command:

$ lldb test
(lldb) target create "test"
Current executable set to '/Users/jviotti/Projects/test' (arm64).
(lldb) image list
[  0] BC3564E3-5ECE-3E4B-8F1F-B33E55F5A0DE 0x0000000100000000 /Users/jviotti/Projects/test
      /Users/jviotti/Projects/test.dSYM/Contents/Resources/DWARF/test
...
[  3] C2087C40-CE4A-38D9-93E8-17FC27009982 0x0000000000000000 /Users/jviotti/Projects/llvm-project/build/lib/libc++.1.dylib
...
[ 40] 9DD254EE-ED97-3989-B46A-AF29B25E425A 0x0000000000000000 /Users/jviotti/Projects/llvm-project/build/lib/libc++abi.1.dylib
...

We can find symbols from the standard library to break on using the image lookup command as usual. For example, we can find the insert_or_assign method of std::unordered_map that we have used in the test program:

(lldb) image lookup --regex --symbol insert_or_assign
2 symbols match the regular expression 'insert_or_assign' in /Users/jviotti/Projects/test:
        Address: test[0x0000000100001d90] (test.__TEXT.__text + 652)
        Summary: test`std::__1::pair<std::__1::__hash_map_iterator<std::__1::__hash_iterator<std::__1::__hash_node<std::__1::__hash_value_type<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, void*>*> >, bool> std::__1::unordered_map<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::hash<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::equal_to<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::allocator<std::__1::pair<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > const, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > > > >::insert_or_assign<char const (&) [4]>(std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >&&, char const (&) [4]) at unordered_map:1241        Address: test[0x00000001000077f4] (test.__TEXT.__stubs + 312)
        Summary: test`symbol stub for: std::__1::pair<std::__1::__hash_map_iterator<std::__1::__hash_iterator<std::__1::__hash_node<std::__1::__hash_value_type<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, void*>*> >, bool> std::__1::unordered_map<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::hash<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::equal_to<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::allocator<std::__1::pair<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > const, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > > > >::insert_or_assign<char const (&) [4]>(std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >&&, char const (&) [4])

Finally, we can break on insert_or_assign as expected and start exploring areas of interest within the standard library:

(lldb) breakpoint set --func-regex insert_or_assign
Breakpoint 1: where = test`std::__1::pair<std::__1::__hash_map_iterator<std::__1::__hash_iterator<std::__1::__hash_node<std::__1::__hash_value_type<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, void*>*> >, bool> std::__1::unordered_map<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::hash<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::equal_to<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::allocator<std::__1::pair<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > const, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > > > >::insert_or_assign<char const (&) [4]>(std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >&&, char const (&) [4]) at unordered_map:1241, address = 0x0000000100001d90
(lldb) run
Process 60223 launched: '/Users/jviotti/Projects/test' (arm64)
Process 60223 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = breakpoint 1.1 2.1
    frame #0: 0x0000000100001d90 test`std::__1::pair<std::__1::__hash_map_iterator<std::__1::__hash_iterator<std::__1::__hash_node<std::__1::__hash_value_type<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, void*>*> >, bool> std::__1::unordered_map<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >, std::__1::hash<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::equal_to<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > >, std::__1::allocator<std::__1::pair<std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > const, std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> > > > >::insert_or_assign<char const (this=0x0000000000036b74 size=0, __k="", __v=<no value available>) [4]>(std::__1::basic_string<char, std::__1::char_traits<char>, std::__1::allocator<char> >&&, char const (&) [4]) at unordered_map:1241
   1238     template <class _Vp>
   1239         _LIBCPP_INLINE_VISIBILITY
   1240         pair<iterator, bool> insert_or_assign(key_type&& __k, _Vp&& __v)
-> 1241     {
   1242         pair<iterator, bool> __res = __table_.__emplace_unique_key_args(__k,
   1243             _VSTD::move(__k), _VSTD::forward<_Vp>(__v));
   1244         if (!__res.second) {
Target 0: (test) stopped.
